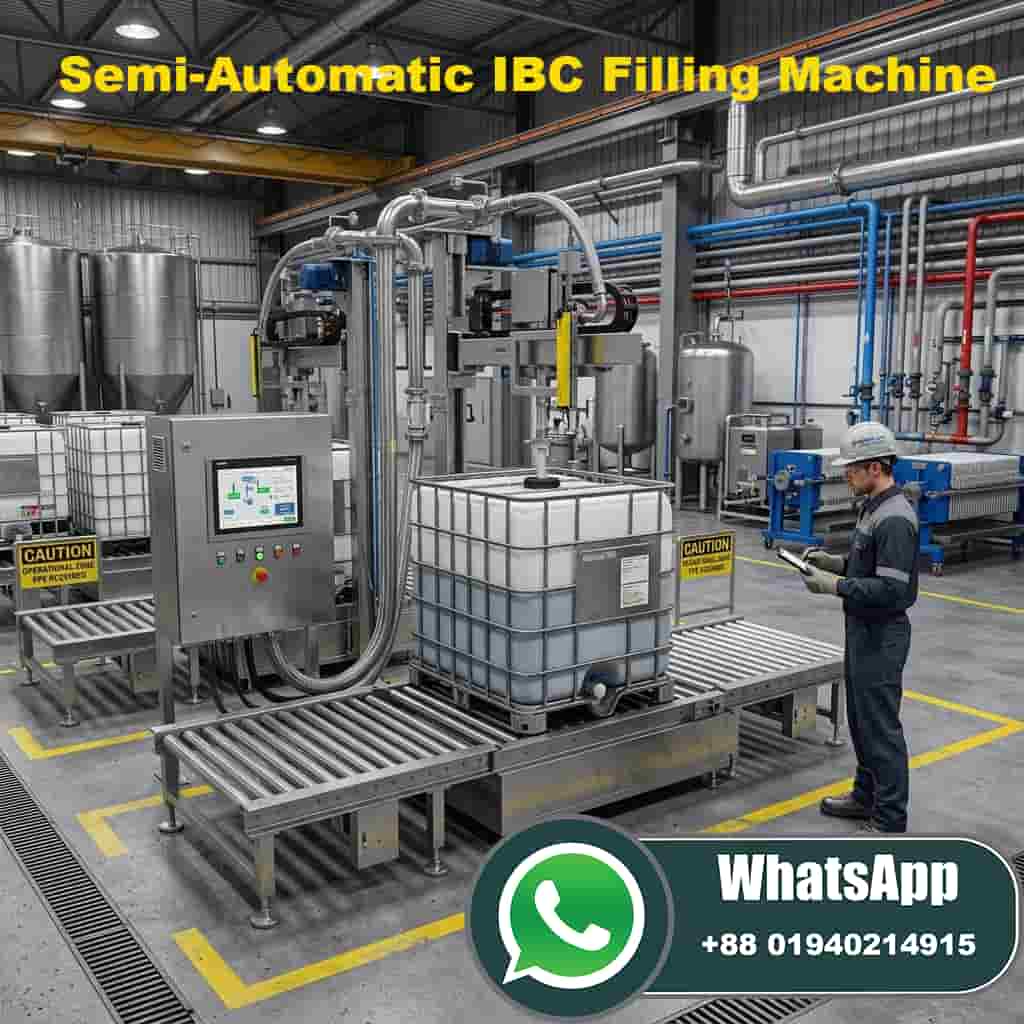

Semi-Automatic IBC Filling Machine
Affordable Precision for Growing Operations
A semi-automatic IBC filling machine delivers calibrated bulk liquid packaging without full automation investment. Operators position containers while the system handles precision filling—ideal for facilities processing 5–30 containers per hour across multiple product lines.
What Is Semi-Automatic Tote Filling?
Definition: A tote filling system requiring minimal operator intervention where the machine controls critical precision operations.
Operational Workflow:
- Operator positions empty IBC tote or drum on filling platform
- System automatically tares container weight and aligns filling nozzle
- Machine executes two-stage filling (high-speed coarse fill + precision top-off)
- Automatic verification confirms target weight within ±0.2%
- Operator removes filled container and cycles next unit
Best Applications: Multi-SKU facilities, pilot production, contract packaging operations with varying batch sizes.
Technical Specifications
| Specification | Standard Model | Heavy-Duty Model |
|---|---|---|
| Container Range | 200L drums to 1,000L IBC totes | Same range |
| Filling Accuracy | ±0.2% by weight | ±0.1% with mass flow meter |
| Throughput Capacity | 5–15 IBCs/hour | 10–20 IBCs/hour |
| Flow Rate | Up to 300 liters/minute | Up to 500 liters/minute |
| Wetted Materials | 304 stainless steel | 316L stainless steel |
| Power Requirements | 220V/single-phase/50Hz | 380V/three-phase/60Hz |
| Control Interface | Touchscreen HMI with recipe storage | PLC with data logging |
| Safety Certification | CE, ISO 9001 | ATEX Zone 2 available |
Applications by Industry
H3: Engine Oil Filling Machine & Motor Oil Packaging
Products Handled: Engine oil, motor oil, hydraulic fluid, transmission fluid, gear oil, coolant
Key Features:
- Heated filling heads for high-viscosity lubricants (up to 5,000 cP)
- Anti-foam sub-surface filling technology
- Nitrogen blanketing option to prevent oxidation
- API compliance for petroleum product packaging
Benefit: Eliminate costly overfilling—reduce product giveaway by 95% versus manual methods.
Lubricant Oil Filling Machine & Industrial Lube Systems
Products Handled: Industrial lubricants, cutting oils, turbine oils, compressor oils, metalworking fluids
Specialized Capabilities:
- Viscosity compensation through temperature-controlled filling
- Drum-to-tote flexibility with quick changeover
- Closed-loop filling for contamination control
- Batch code integration for traceability
Chemical Filling Equipment & Solvent Handling
Products Handled: Solvents, thinners, industrial adhesives, manual epoxy resin, coatings
Safety Engineering:
- Explosion-proof electrical enclosures (ATEX/IECEx certified)
- Vapor extraction ports for operator protection
- PTFE seals and Hastelloy contact parts for corrosive compatibility
- Static grounding systems prevent electrostatic discharge
Edible Oil Filling Machine & Cooking Oil Packaging
Products Handled: Vegetable oil, cooking oil, sunflower oil, palm oil, canola oil, olive oil
Hygiene Standards:
- Food-grade 316L stainless steel construction
- Sanitary tri-clamp fittings for easy cleaning
- FDA, HACCP, and GMP compliant design
- Clean-in-place (CIP) compatible configuration
Pesticide Filling Machine & Agricultural Chemicals
Products Handled: Herbicides, insecticides, fungicides, liquid fertilizers, nutrients
Compliance Features:
- EPA-compliant closed filling systems
- Operator safety enclosures with fume extraction
- Precise dosing for regulated chemical applications
- Spill containment and secondary protection
Key Features & Competitive Advantages
✅ Tool-Free Changeover: Adjust between drum and IBC sizes in under 15 minutes—no mechanical expertise required
✅ Recipe Memory System: Store 20+ product configurations; recall fill parameters instantly via touchscreen
✅ Precision Weighing: C3-grade load cells with 128 samples/second sampling rate ensure accurate fills
✅ Drip-Free Technology: Positive shut-off nozzles with suction drip collection eliminate product loss
✅ Portable Design: Forklift pockets and compact footprint enable flexible production line layouts
✅ Data Export: USB connectivity for batch record documentation and quality traceability
When to Choose Semi-Automatic
| Operational Factor | Semi-Automatic Advantage |
|---|---|
| Production Volume | 20 containers/hour optimal range |
| Product Variety | Frequent changeovers handled efficiently |
| Floor Space | Compact footprint vs. conveyor systems |
| Capital Budget | 40–60% lower investment than automatic |
| Labor Availability | Simple operation with minimal training |
| Flexibility | Accommodate varying container sizes |

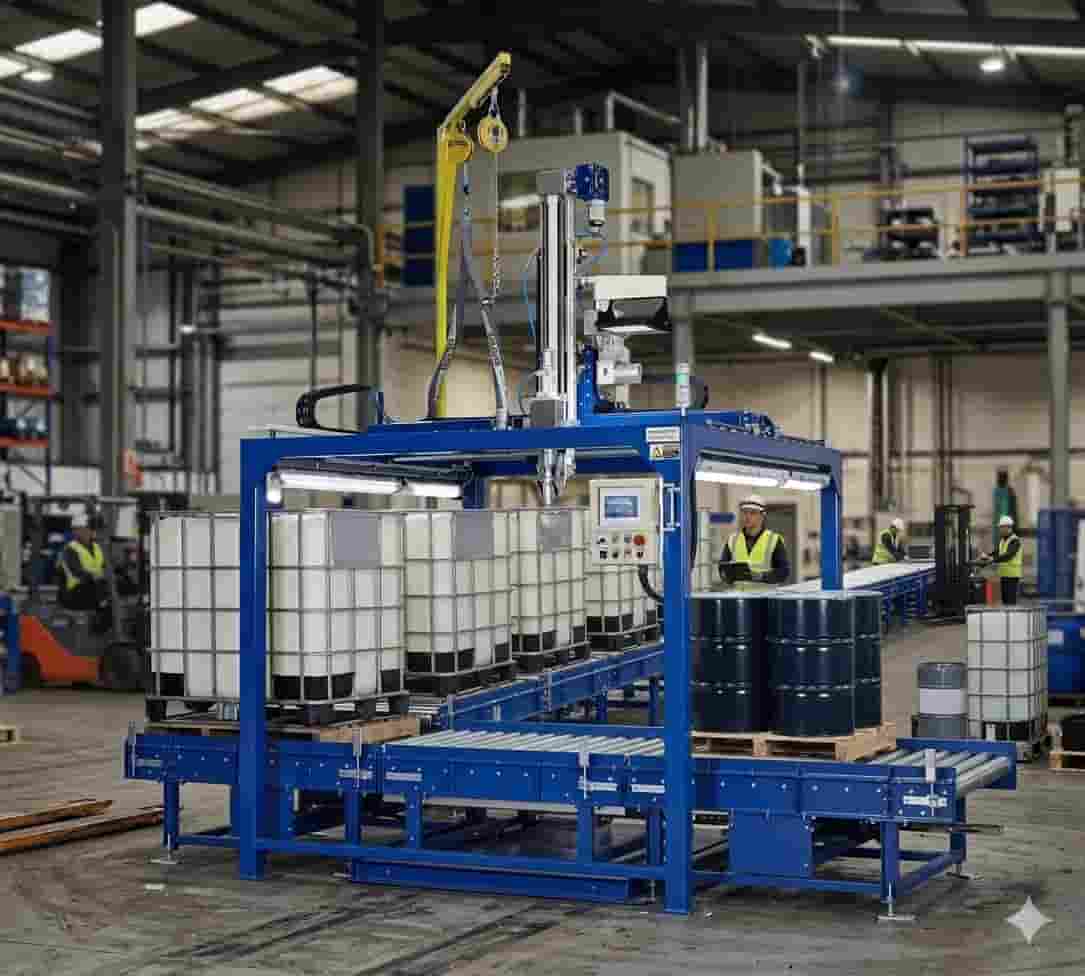

Automatic IBC Filling Machine
High-Speed Unattended Bulk Liquid Packaging
An automatic IBC filling machine transforms bulk liquid operations from labor-intensive processes into continuous, data-driven production systems. From automatic container infeed to filled tote discharge, these systems operate with minimal human intervention—integrating seamlessly with palletizing, warehousing, and enterprise management systems.
What Is Fully Automatic Tote Filling?
Definition: A tote filling system with complete automation of the packaging cycle, including container handling, positioning, filling, verification, and discharge.
Automated Workflow:
- Automatic infeed: Conveyors or automated guided vehicles position empty containers
- Dynamic positioning: Vision-guided or mechanical centering ensures precise nozzle alignment
- Intelligent filling: Two-stage algorithm adjusts flow rate based on real-time weight feedback
- Auto-verification: Inline checkweighing confirms accuracy before discharge
- Automatic discharge: Filled containers exit to palletizing or staging areas
- Data integration: Production metrics transmit directly to MES/ERP systems
Best Applications: High-volume production, 24/7 operations, single-product or low-SKU-count facilities.
Technical Specifications
| Specification | Standard Automatic | High-Speed Automatic |
|---|---|---|
| Container Range | 200L drums to 1,000L IBC totes | Same range |
| Filling Accuracy | ±0.2% by weight | ±0.05% with Coriolis mass flow |
| Throughput Capacity | 20–40 IBCs/hour | 40–60 IBCs/hour |
| Flow Rate | Up to 600 liters/minute | Up to 1,000 liters/minute |
| Wetted Materials | 304/316L stainless steel | Hastelloy C22 for acids |
| Power Requirements | 380V/three-phase/50Hz | 480V/three-phase/60Hz |
| Control System | Siemens S7 PLC with 10″ HMI | Industrial PC with IIoT connectivity |
| Communication | OPC-UA, Ethernet/IP, Profinet | Full MES/ERP integration |
| Safety Rating | Category 3 PLd safety circuits | ATEX Zone 1/21 certified |
Applications by Industry
Engine Oil Packing Machine & Motor Oil Production Lines
Production Scale: 30–50 drums/hour or 15–25 IBC totes/hour
System Integration:
- Direct connection to blending systems and tank farms
- Automatic viscosity compensation based on product temperature
- Nitrogen purging for oxidation-sensitive formulations
- Inline filtration and quality verification
Efficiency Gain: Reduce labor requirements by 80% versus semi-automatic operations.
Lubricant Oil Filling Line & Industrial Oil Systems
Capabilities:
- Handles viscosities to 10,000 cP with heated product paths
- Automatic drum handling, labeling, and palletizing integration
- Recipe-driven operation for synthetic and mineral oil blends
- Real-time density compensation for accurate mass filling
Industrial Adhesive Filling Machine & Epoxy Resin Systems
Precision Features:
- Metered mixing for two-component epoxies and polyurethanes
- Disposable fluid path options for color-change applications
- Automated cleaning cycles (CIP) between product changes
- Vacuum deaeration for bubble-free filling
Solvent Filling Machine & Thinner Packaging
Safety Engineering:
- Full ATEX/IECEx explosion-proof certification
- Vapor recovery and closed-loop filling systems
- High-speed operation with vapor-tight connections
- Emergency shutdown and containment protocols
Acid Filling Machine & Corrosive Chemical Handling
Material Specifications:
- PTFE-lined piping and Hastelloy C22 valves
- Chemical-resistant load cells and instrumentation
- Secondary containment with spill detection
- Automated neutralization and washdown systems
Edible Oil Filling Line & Vegetable Oil Production
Food Safety Standards:
- 3A sanitary design with full CIP capability
- Lot coding and weight verification integration
- Aseptic filling options for sensitive oils
- Complete material traceability and batch records
Pesticide Filling Equipment & Agricultural Chemicals
Regulatory Compliance:
- EPA-registered closed filling systems
- Operator isolation cabins for toxic material protection
- Precision dosing for regulated active ingredients
- Environmental containment and waste minimization
Advanced Automation & Industry 4.0 Features
🤖 Robotic Integration: Compatible with palletizing robots and automated guided vehicles (AGVs) for lights-out manufacturing
📊 Smart Factory Connectivity: OPC-UA protocol enables seamless data exchange with SCADA, MES, and ERP platforms
🧠 AI-Driven Optimization: Machine learning algorithms adjust fill parameters based on temperature, viscosity, and container variations—improving accuracy over time
🔄 Automatic Changeover: Recipe-driven format changes complete in under 5 minutes without tools
🌡️ Thermal Management: Integrated heating and cooling systems maintain optimal product viscosity throughout the filling process
⚡ Energy Efficiency: Variable frequency drives reduce power consumption by 30% versus conventional fixed-speed systems
Semi-Automatic vs. Automatic Comparison
| Decision Factor | Semi-Automatic | Automatic |
|---|---|---|
| Throughput | 5–20 containers/hour | 20–60 containers/hour |
| Labor Requirements | 1 operator per station | 1 operator per 3–4 lines |
| Initial Investment | $6000–$75,000 | $50,000–$300,000+ |
| Changeover Time | 15 minutes | <5 minutes |
| System Integration | Standalone operation | Full line integration |
| Data Collection | Basic USB export | Real-time MES/ERP connectivity |
| Best Application | Low volume, many SKUs | High volume, consistent product |
Request Automatic System Quote
Design your automatic tote filling system:
- Target production volume (containers per hour)
- Product characteristics: viscosity, temperature, volatility, corrosiveness
- Container types: drum sizes, IBC specifications, mixed handling
- Safety and compliance requirements
- Integration scope: conveyors, palletizers, warehouse management, MES/ERP
